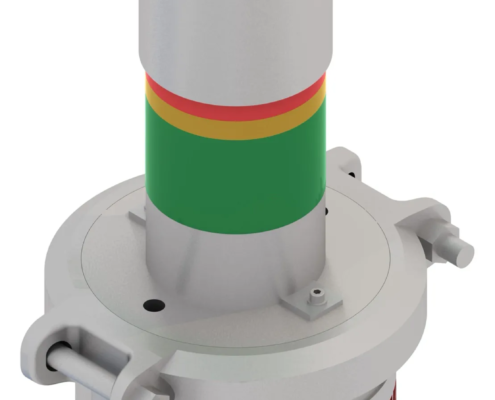

Accumulator – Piston – N53C

The N53C piston accumulator from Flowserve provides optimal lubrication for dual pressurized mechanical seals to promote long seal life and equipment reliability across a broad range of applications. It’s designed to be easy to install, simple to operate, and requires minimal maintenance.

Request a quote

Features and Benefits

A spring-energized piston maintains a minimum pressure to the dual mechanical seal when the equipment is idle.
When the equipment starts and pressure builds in the seal chamber, a reference line from the seal chamber enables the N53C piston accumulator to boost the pressure to the dual mechanical seal and establish the required pressure differential.
The N53C piston accumulator will always maintain a positive pressure differential for proper operation of the dual mechanical seal.

Specifications

Standards

API Standard 682 (4th Edition)
ASME B31.3
Pressure Equipment Directive (PED) 2014/68/EU
CSA B51

Operating Parameters

Maximal working temperature: 82 °C (177 °F) Limited by clamp gasket material
Minimum operating temperature: -17 °C (1.4 °F)
Maximal Working Pressure: 40 BarG (580 PSIG)

Size Range: 1.4 U.S. Gallon (5 Litter)

Materials: 316 stainless steel wetted parts

Industries

Chemicals

Basic (Organic & Inorganic)
Specialty (Fine & Consumer)
Biofuels
Pharmaceutical

Water

Water Management
Wastewater
Agriculture & Irrigation

General Industries

Pulp & Paper
Steel & Primary Metals
Food & Beverage
Corn Wet Milling & Ethanol
Other Industries

Mining

Documents & Support

Related Literature

N53C General Industry Piston Accumulator – Flyer

Download

N53C Piston Accumulator User Instructions (IOM)
