Drill Stem for Decoking Systems
You are here: / / / Drill Stem for Decoking Systems

Drill Stem for Decoking Systems

Drill Stems

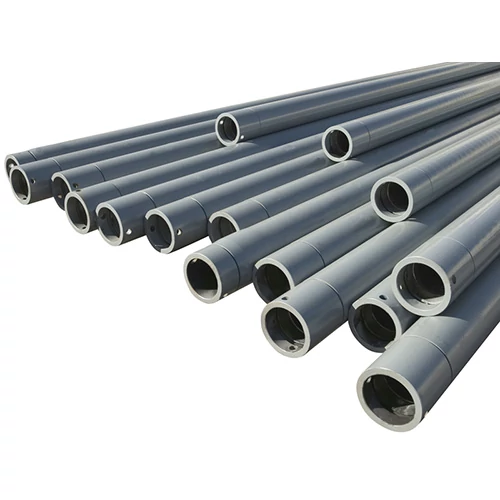

Saptora drill stems transmit water and torque from the rotary joint to the cutting tool. Their threaded design offers exceptional durability, with side-load strength four times greater than comparable welded stems.

The optional Scorpion FLS 600 drill stem installation tool enhances safety and reduces installation time, simplifying disassembly and reassembly compared to traditional labor-intensive methods.

Request a quote

Features & Benefits

  • Drill Stem
    • Fabricated from ASTM A-519 Gr. 4140 steel tubing in 6 m (20 ft) sections
    • Hot process expansion maintains wall thickness of tube through the female threaded end and reduces stress in the area of thread engagement.
    • API 5CT 6.625 in extreme-line threads
    • Heat treated for maximum strength
    • Swaged female ends maintain thickness throughout.
    • Low torque requirement to get full metal-to-metal engagement

    Optional Scorpion FLS 600 Drill Stem Assembly Tool

    • Replaces conventional labor-intensive equipment, such as multiple wrenches and chains, with a single unit that is both safer and easier to operate
    • Compact, single-unit design increases portability and alleviates the process of getting equipment and crews in place.
    • Built-in backup removes the need for a permanent anchor and enables operation by a single individual without risk to personnel safety.
    • Easy-to-operate drill stem tensioner provides a powerful, versatile method for making up and breaking out drill stem sections; instantly changes from break-out to make-up mode


Specification

UL, CSA, IEC as applicable


Industries

  • Oil & Gas
    • Downstream Processing

Documents & Support

Related Literature

Saptora Decoking System Brochure
