Durco® Mark 3 ISO Sealed Chemical Process Pump
You are here: / / / / Durco® Mark 3 ISO Sealed Chemical Process Pump

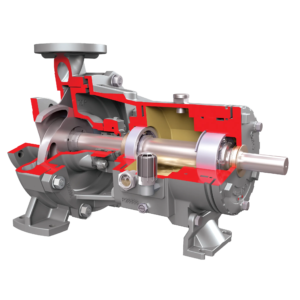

Durco® Mark 3 ISO Sealed Chemical Process Pump

The Durco Mark 3 ISO chemical process pump provides unmatched performance and reliability, conforms to ISO 2858 and ISO 5199 design criteria and incorporates advanced design features. The ruggedly designed Durco Mark 3 ISO offers significant operational and maintenance enhancing benefits that help users to minimize the total cost of pump ownership.

Request a quote

Features & Benefits

  • High efficiency design with low power consumption
  • Modular system resulting in maximum flexibility to adapt to a wide variety of applications
    • Extensive hydraulic options available to adapt to different process fluids
    • High interchangeability with five casing options on the same power end
    • Four high efficiency impeller options; reverse vane, closed and open impellers available
  • Low maintenance costs due to minimal downtime and maximized uptime
    • External micrometer impeller adjustment mechanism accurately sets impeller clearance in 20 seconds, in the shop or the field
    • Back pull-out design allows removal of rotating element without removing casing, piping or motor
  • High environmental and personal safety during operation and maintenance
  • Heavy-duty casing with integral foot and multi-ribbed discharge flange provides superior resistance to pipe loads and improves reliability
  • Precision cast reverse vane impeller is the only impeller design that offers repeatable pump performance throughout the life of the pump
  • SealSentry™ seal chamber extends seal life and provides advanced self-flushing capability
  • Standard non-contacting labyrinth seals keep lubricant in and contaminants out
  • Heavy-duty radial and thrust bearings selected for long life and reliability
  • Two-piece, ductile iron bearing housing is designed for safety, strength, interchangeability and retrofit capability
  • 1935/2004/EC food grade compliant option


Spefification

  • ISO 2858
  • ISO 5199
  • ATEX (2014/34/EU)
  • Food grade (1935/2004/EC)
  • Drinking water (98/83/EC)
  • CUTR
  • Flows to 1400 m3/h (6160 gpm)
  • Heads to 220 m (720 ft)
  • Pressures to 25 bar (365 psi)
  • Temperatures from -80°C (-110°F) to 400°C (752°F)

Size Range: 20 mm (0.75 in) to 200 mm (8 in)


Industries

  • General Industries
    • Pulp & Paper
    • Steel & Primary Metals
    • Food & Beverage
    • Corn Wet Milling & Ethanol
    • Other Industries
  • Chemicals
    • Basic (Organic & Inorganic)
    • Specialty (Fine & Consumer)
    • Biofuels
    • Pharmaceutical
  • Water
    • Water Management
    • Wastewater
    • Agriculture & Irrigation
    • Flood Control System
  • Oil & Gas
    • Upstream Exploration & Production
    • Midstream Transportation
    • Downstream Processing
  • Power
    • Nuclear
    • Conventional Steam
    • Geothermal
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
  • Mining

Documents & Support

Related Literature

Durco® Mark 3™ ISO Pump Maintenance Kits – Flyer

Download

Durco Mark 3 ISO Pumps – Brochure

Download
