ESP3 Sump Pump
You are here: / / / / ESP3 Sump Pump

ESP3 Sump Pump

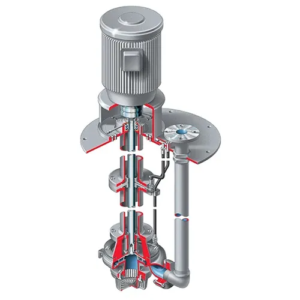

Boasting the same casing, reverse vane impeller and CBL cover as the industry-leading Durco Mark 3 chemical process pump, the ESP3 pump is ruggedly built to handle tough applications. It is the only vertical wet-pit immersion sump pump to offer parts interchangeability with standard ASME B73.1 horizontal pumps. The upshot is increased parts standardization and reduced inventory costs.

Request a quote

Features & Benefits

  • The ruggedly built vertical, chemical sump pump is designed to provide improved performance, increased part standardization and reduced inventory costs.
    • Increased parts standardization and reduced inventory costs from the only vertical wet-pit immersion sump pump to offer parts interchangeability with standard ASME B73.1 horizontal pumps (Durco Mark 3)
    • Repeatable performance for the life of the pump due to reverse vane impeller
    • Reduced maintenance and downtime in difficult process fluids owing to a wide array of wetted materials, bearing materials and flush plan options
    • Low total cost of ownership made possible by many features designed to reduce costs associated with installation and maintenance

Spefification

  • Flows to 1300 m3/h (5700 gpm)
  • Heads to 116 m (380 ft)
  • Pressures to 12 bar (175 psi)
  • Temperatures to 180°C (350°F)

Size Range:

  • Sizes from 25 mm (1 in) to 200 mm (8 in)
  • Pit depths to 6 m (20 ft); greater depths achievable with optional tailpipe

Industries

  • Power
    • Conventional Steam
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
  • Chemicals
    • Basic (Organic & Inorganic)
    • Specialty (Fine & Consumer)
    • Biofuels
    • Pharmaceutical
    • Petrochemicals
  • Water
    • Water Management
    • Flood Control System
  • Oil & Gas
    • Upstream Exploration & Production
    • Midstream Transportation
  • General Industries
    • Pulp & Paper
    • Steel & Primary Metals
    • Other Industries
