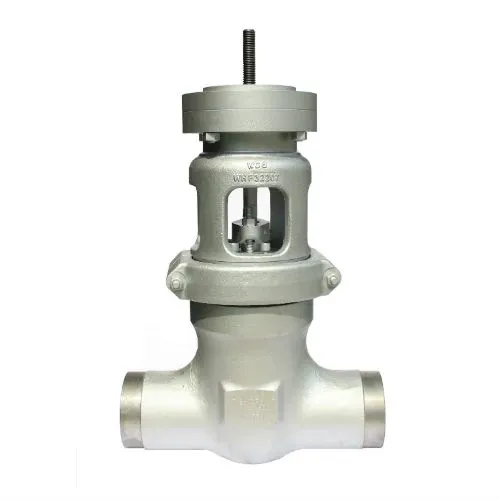

Flexible Split Wedge Gate Valves – Equiwedge
A large bore gate valve with body guided, split wedges, offering superior leak tightness and performance.
Features & Benefits
- Maximized MTBF and minimize total cost of ownership – Designed to optimize component flexibility while maintaining tight tolerances, to reduce stresses placed on components by thermal binding
- Minimized valve leakage – Designs incorporate disk guidance and optimized gate design for tight seating
- Materials and welding capabilities for high temperature, high pressure service – Cast and Forged offerings incorporating the latest in hardfacing welding technologies/processes maximize the valve component life-time
Spefification
- ASME B16.34
- ASME Section III
Size Range:
- NPS 4 to 42
- DN 100 to 1052
Pressure Class Range
- 600 to 2500
- PN 110 to 420
Seating Material: Metal
Industries
- Power
-
- Nuclear
- Conventional Steam
- Combined Cycle
- Geothermal
- Chemicals
-
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Petrochemicals
- Oil & Gas
-
- Downstream Processing
Documents & Support
Related Literature
Edward Valves: Development of the Flowserve Edward Equiwedge® Gate Valve – Technical Article
Edward Equiwedge Gate Valve – User Instructions (IOM)
