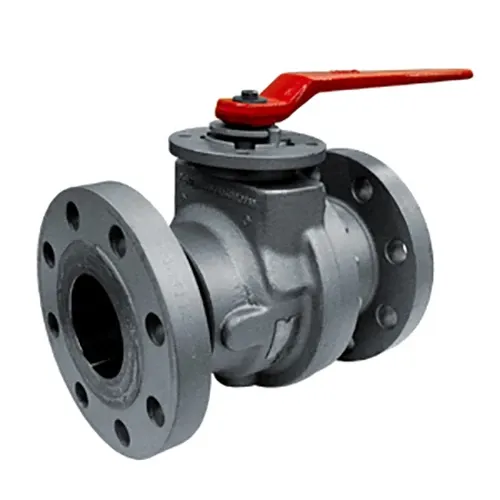

Floating Ball Valves – FK75M
Argus™ FK75M is a split body ball valve for the chemical and petrochemical industries with a highly standardized design.
Features & Benefits
- Increased uptime and durability from robust design with chemical coating and high-performance cladding
- Reliable performance to highest zero-tightness demands enabled by FCI 70-2 Class VI seat design
- Reduced replacement cost via easy upgrades and chemical coating options for diverse applications
- Improved plant and personnel safety assured by valve compliance with fugitive emissions standard ISO 15848
Spefification
- ASME B16.34
- API 6D
- PED 97/23/EC
- Fire-safe: API 607/ ISO 10497-5
- Oxygen Service: ASTM G124, BAM, EIGA
- FE (Fugitive emission): ISO 15848, TA LUFT VDI/VDE 2440
- ISO 9001
- Anti-static: DIN EN ISO 17292
- Shell : SPP 77/300 – CG Spec (Slag sluice systems)
- Brazil: NBR 15847
- Cryogenic: BS 6364, SPE 77/306
Size Range:
- DN 65 to 200mm (DIN)
- NPS 2 1/2 to 12 (ASME)
Pressure Class Range:
- PN 16 to PN 40 (DIN)
- Class 150 to 900 (ASME)
Temperatures:
- -48°C to 400°C
- -54°F to 752°F
Seating Material: Metal or soft seated
Industries
- Power
-
- Nuclear
- Conventional Steam
- Combined Cycle
- Biomass & MSW
- Geothermal
- Chemicals
-
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Pharmaceutical
- Petrochemicals
- Water
-
- Water Management
- Wastewater
- Agriculture & Irrigation
- Flood Control System
- Oil & Gas
-
- Upstream Exploration & Production
- Midstream Transportation
- Downstream Processing
- General Industries
-
- Other Industries
- Mining
Documents & Support
Related Literature
Argus FK75M
Argus®Ball Valve FK and HK- Installation Operation Maintenance Manual
