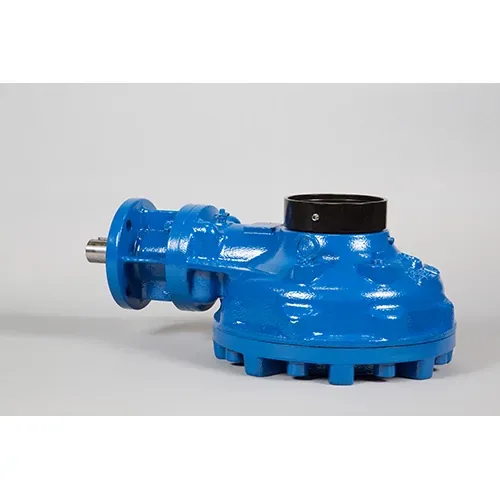

Gearboxes – Multi-Turn – V series
The Limitorque V series of bevel gearboxes is designed for manual and motorized operation of gate and globe valves as well as slide gates.
Features & Benefits
- Broad application versatility provided by excellent sealing of mating surfaces, which allows for weatherproof or temporary submersion applications
- Increased uptime facilitated by roller bearing-supported shaft and high-strength bevel gearing, which are rated for extremely high thrust and torque requirements
- Longer service life via ductile iron housing and roller bearing-supported shafts and drive sleeve that provide durability
- Features top entry stem nut
- -300C to 900C ambient temperature range
Specification
Torque Rating Range: Torque output to 38 350 ft-lb (52 000 Nm)
Thrust Rating Range: Thrust output to 1.7 million lb (7650 kN)
Industries
- General Industries
- Water
-
- Water Management
- Wastewater
- Oil & Gas
-
- Midstream Transportation
- Downstream Processing
- Power
-
- Conventional Steam
- Geothermal
- Combined Cycle
- Mining
Documents & Support
Related Literature
Limitorque V Series Bevel Gearboxes Flyer
Limitorque V Series User Instructions (IOM)
Features & Benefits
- Features a modular roomy design, corrosion resistant engineered resin, low weight
- Large range of global IS, NI and mb certificates enables use in all major applications worldwide
- Application flexibility due to the ability to be easily and directly mounted onto actuators for both rotary and linear applications with multiple switch options
- Optional continuous position feedback and bus communication
- Ingress protection ensured by design that meets IP66/67 and NEMA Type 4X standards
Specification
ATEX, IEC, CSA, SIL
Industries
- Power
-
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
- Biomass & MSW
- Geothermal
- Chemicals
-
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Pharmaceutical
- Petrochemicals
- Water
-
- Water Management
- Wastewater
- Agriculture & Irrigation
- Flood Control System
- Oil & Gas
-
- Upstream Exploration & Production
- Midstream Transportation
- Downstream Processing
- General Industries
-
- Pulp & Paper
- Steel & Primary Metals
- Food & Beverage
- Corn Wet Milling & Ethanol
- Other Industries
- Mining
Documents & Support
Related Literature
Worcester Controls PS/PM Series UltraSwitch
PMV PS/PM Ultraswitch™ User Instructions (IOM)
