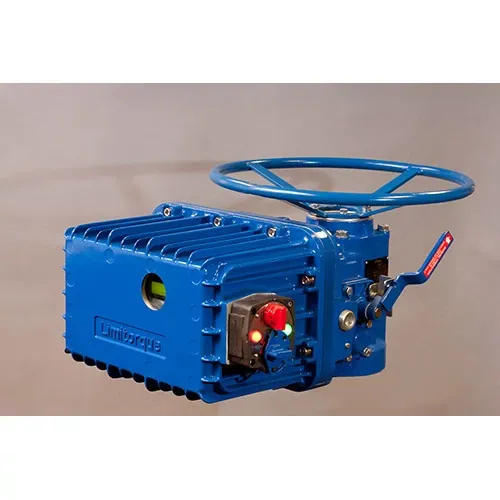

Intrusive Multi-Turn Actuators – L120
Limitorque L120 electric actuator is designed for a wide range of environmental applications in power, oil & gas, and water industries.
Features & Benefits
-
- Electro-mechanical design
- Proven safety with explosion-proof certification, torque overload protection, plus resistance to lightning, EMI, fire, vibration and high-pressure steam
- Longer service life from aluminum and ductile iron housings, plus anti-friction bearing-supported alloy steel worm shafts with bronze worm gears
- Broad application flexibility via integration with most network protocols through UEX electronic controls package
- Extreme environment performance available from weatherproof, submersible and explosion-proof construction options
- 100% repeatable, geared limit switch with 300V rated contacts
- 300V rated torque switch
- 3-phase, 1-phase, and DC motors
Specification
-
AWWA C542
Torque Rating Range: Output torque to 60 000 ft. lbs (81 349 Nm)
Thrust Rating Range: Output thrust to 500 000 lbs (2224 kN)
Industries
- General Industries
- Water
-
- Water Management
- Wastewater
- Oil & Gas
-
- Midstream Transportation
- Downstream Processing
- Power
-
- Conventional Steam
- Geothermal
- Combined Cycle
- Mining
Documents & Support
Related Literature
Limitorque L120 Series Electric Actuators – Brochure
Limitorque L120-85 Series Electric Actuator – User Instructions (IOM)
Features & Benefits
- Features a modular roomy design, corrosion resistant engineered resin, low weight
- Large range of global IS, NI and mb certificates enables use in all major applications worldwide
- Application flexibility due to the ability to be easily and directly mounted onto actuators for both rotary and linear applications with multiple switch options
- Optional continuous position feedback and bus communication
- Ingress protection ensured by design that meets IP66/67 and NEMA Type 4X standards
Specification
ATEX, IEC, CSA, SIL
Industries
- Power
-
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
- Biomass & MSW
- Geothermal
- Chemicals
-
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Pharmaceutical
- Petrochemicals
- Water
-
- Water Management
- Wastewater
- Agriculture & Irrigation
- Flood Control System
- Oil & Gas
-
- Upstream Exploration & Production
- Midstream Transportation
- Downstream Processing
- General Industries
-
- Pulp & Paper
- Steel & Primary Metals
- Food & Beverage
- Corn Wet Milling & Ethanol
- Other Industries
- Mining
Documents & Support
Related Literature
Worcester Controls PS/PM Series UltraSwitch
PMV PS/PM Ultraswitch™ User Instructions (IOM)
