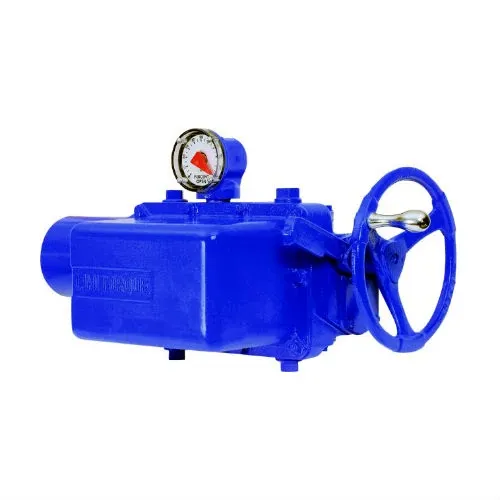

Intrusive Multi-Turn Actuators – L120
Limitorque L120 electric actuator is designed for a wide range of environmental applications in power, oil & gas, and water industries.
Features & Benefits
- Long service life with rugged with cast iron housing and precision-machined gearing
- Extreme environment performance enabled by nuclear, weatherproof, submersibleor explosion-proof construction
- Lower maintenance and downtime owing to torque-limiting feature, which de-energizes the motor to prevent valve damage in the event of an obstruction
- Fully qualified for nuclear applications to IEEE 384, 323 and 344
Specification
-
AWWA C542
Torque Rating Range: Output torque to 60,000 ft. lbs (81 349 Nm)
Thrust Rating Range: Output thrust to 500,000 lbs (2224 kN)
Industries
- General Industries
- Water
-
- Water Management
- Wastewater
- Oil & Gas
-
- Midstream Transportation
- Downstream Processing
- Power
-
- Conventional Steam
- Geothermal
- Combined Cycle
- Mining
