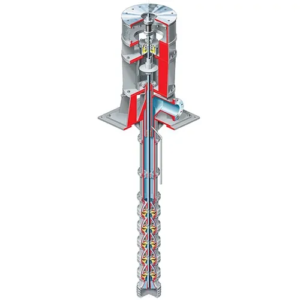

Molten Salt VTP Wet Pit Pump

Built upon the popular VTP pump, Flowserve Molten Salt VTP was designed using advanced thermal mapping software to ensure adequate heat dissipation and mitigate distortion. It is available in single or multistage diffuser designs.

Request a quote

Features & Benefits

Low pump submergence allows for greater energy generation
Low NPSHR for enhanced suction performance
Excellent heat dissipation design prevents distortion at high temperatures
Advanced fluid sealing system protects against fluid leakage and reduces heat conduction
Materials engineered to equalize thermal growth and forestall distortion

Spefification

Hydraulic Institute
AWWA E103
ISO 13709 / API 610

Flows to 13600 m3/h (60 000 gpm)
Heads to 530 m (1740 ft)
Pressures to 100 bar (1450 psi)
Temperatures to 600°C (1100°F)
Settings to 20 m (65 ft)

Size Range:

Sizes from 150 mm (6 in) to 1375 mm (55 in)

Industries

Power
- Concentrated Solar Power (CSP)
