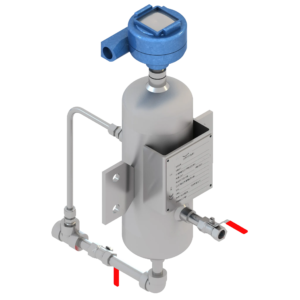

Reservoir – N65

The N65 leakage collection and detection system is designed for general industry and is used with single mechanical seals on process fluids that condense at ambient atmospheric conditions. Mechanical seal failure can be detected when an excessive flow rate into the system increases the fluid level in the reservoir.

Request a quote

Features and Benefits

Maximum absolute working pressure (MAWP) 27.6 bar at 149°C (400 psi at 300°F)
Ambidextrous mounting options for easy installation
Designed with standard 3 liter (0.79 US gallon) effective volume
All stainless-steel construction for superior corrosion protection
Low-cost and easy-to-install standard NPT connections and construction
Pre-configured switch selections for reduced lead-time
Designed in accordance with ASME VIII.1 with optional U-stamp
Optional PED and CRN compliance

Specifications

Standards: NSF/ANSI/CAN 61 & 372

Size Range: 25 to 200 mm (1.000 to 8.000 inch)

Operating Parameters

Pressure: Up to 20.6 bar (300 psi)
Temperature: -40 to 204°C (400°F)
Speed: up to 23 m/s (75 fps)

Industries

Water

Water Management
Wastewater
Agriculture & Irrigation
Flood Control System
Desalination

General Industries

Other Industries
