Saptora Airfin ANC Seal Cooler

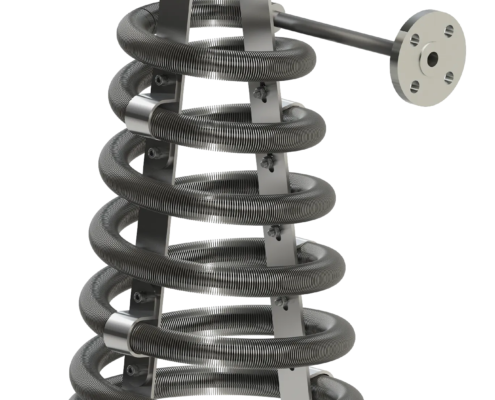

The ANC Seal Cooler is designed to increase performance of finned pipe seal cooler designs, including no-wind and low-wind applications. The ANC Seal Cooler can be applied to multiple seal support systems, including piping plans 21, 23, 53B and 53C.

Request a quote

Features and Benefits

  • Unique conical design maximizes heat transfer in no-wind or low-wind services
  • Fully compliant with API 682 4th Edition with large tube size to maximize flow
  • 316 stainless steel construction provides superior corrosion resistance
  • Minimizes operating costs and maintenance with no utilities required
  • Compact design simplifies installation and maintenance, including easy cleaning, venting and draining
  • Robust welded fins can be cleaned with power washers
  • Two tube lengths with series and parallel flow configurations provide flexibility to achieve the right amount of cooling

Specifications

API 682 4th Edition

  • Maximum temperature: 371°C (700°F)
  • Maximum pressure: 200 bar @ 371°C (2,900 psig @ 700°F)

Size Range:

  • Cooling coil tube O.D.: 19 mm (0.750 in)
  • Cooling coil tube wall thickness: 2.77 mm (0.109 in)
  • Effective cooling area: 7.3 m² (78 ft²)
  • Volume: 0.85 or 1.7 L (0.22 or 0.45 gallon)

Pressure Class Range:

  • Connections: Tube end, NPTF or flange
  • Flange rating: 300#, 600# or 1500#

Material:

  • 316 stainless steel construction provides superior corrosion resistance

Industries

  • Oil & Gas
    • Midstream Transportation
    • Downstream Processing
  • General Industries
    • Other Industries

Documents & Support

Related Literature

ANC Seal Cooler – Flyer

Download
Air Coolers (ANC, Finned Pipe, and ANQ Cooler Series) – IOM
Download
