Saptora Ampliflow T-Boost Compressor Seals and Systems

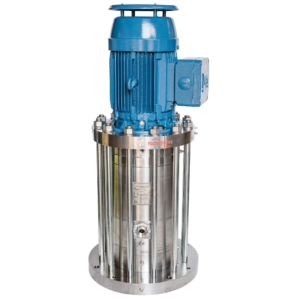

Centrifugal compressors fitted with dry gas seals report impressive reliability statistics — and their secret to success is an uninterrupted supply of clean seal gas. The Flowserve Ampliflow T-Boost is an electrically driven seal gas booster that improves operational reliability by continuously delivering seal gas during periods of low differential pressure.

Request a quote

Features and Benefits

  • Provides seal gas during periods of low available differential pressure to allow unlimited pressurized protection of the dry gas seal, improving compressor uptime
  • Higher energy efficiency eliminates eddy current losses and reduces operation costs.
  • Hermetically safe design assures zero leakage of gas through boundaries.
  • High-pressure containment shell around the magnetic coupling withstands all pressure conditions, including MAWP.
  • Minimum wearing parts reduces maintenance requirements compared to competitive designs and helps to achieve MTBR of 24,000 operating hours.
  • Easy to set up and connect to existing dry gas seal support systems
  • Retrofit/upgrade option with pneumatic-driven piston boosters to extend reliability and application range
  • Innovative drive system with an intelligent motor controller provides the right flow and pressure over a variable compressor operating window.
  • One or two impeller designs possible to meet application requirements

Specifications

Standards

  • Standard area classification: NEC Class 1, ATEX Zone 1

Operating Parameters

  • Gas media: H2 to CO2
  • Electric motor: 5.5 to 18 kW variable frequency driven

Pressure Class Range

  • Maximum allowable working pressure: up to 350 bar (5000 psi) @ -20°C to 180°C (-4°F to 356°F)

Materials

  • Metal components: stainless steel
  • Containment shell: ceramic
  • Elastomers: FKM, others

Size Range

  • Dimensions: 544 dia. x 1222 mm length (21 x 48 in)
  • Connections: threaded, flange
  • Certifications: NACE, others upon request
