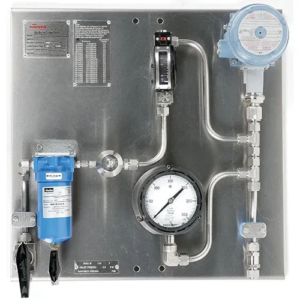

Saptora Gas Panels Seal Support System

Features and Benefits

• Used for unpressurized and pressurized Flowserve gas seals
• Buffer panels provide unpressurized dual seals with a gaseous quench to flush inner seal leakage to a collection system
• Barrier panels provide dual seals with gaseous barrier pressure set higher than the process pressure. This results in a small amount of gas leakage into the process and zero process leaking to atmosphere
• Flowserve offers other configurations of control systems ranging from simple standard to complex custom designs

Specifications

API 682,ASME B31.3, PED

• Pressure up to 34.4 bar (500 psi)
• Temperature up to 93°C (200°F)
• Flow up to 14.2 lpm (30 SCFH)

Industires

• Power
• • Nuclear
  • Conventional Steam
  • Combined Cycle
  • Concentrated Solar Power (CSP)
  • Biomass & MSW
  • Geothermal
• Chemicals
• • Basic (Organic & Inorganic)
  • Specialty (Fine & Consumer)
  • Biofuels
  • Pharmaceutical
  • Petrochemicals
• Water
• • Water Management
  • Wastewater
  • Agriculture & Irrigation
  • Flood Control System
• Oil & Gas
• • Upstream Exploration & Production
  • Midstream Transportation
  • Downstream Processing
• General Industries
• • Pulp & Paper
  • Steel & Primary Metals
  • Food & Beverage
  • Corn Wet Milling & Ethanol
  • Other Industries
• Mining
