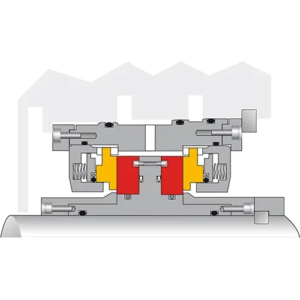

Saptora Gaspac® Compressor Seal

Gaspac dry gas seals incorporate non contacting lift-off technology to provide low break away torque and reliable performance under all operating conditions. The Gaspac is a standardized modular design in various configurations.

Request a quote

Features and Benefits

The GASPAC seal is a proven design using either the bi-directional T-Groove technology or the Advanced Pattern Groove (APG) technology.
Both proven lift-off patterns have high film stiffness and damping capabilities that maintain the gas film under slow roll conditions as well as high speeds up to 250 m/s (49,212 fpm).

Specifications

API, ASME others

Up to 650 bar (9427 psi), to 230°C (450°F), up to 250 m/s (49,200 fpm), to 360 mm (to 14.125 inch)

Industires

Power
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
- Biomass & MSW
- Geothermal
Chemicals
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Pharmaceutical
- Petrochemicals
Oil & Gas
- Upstream Exploration & Production
- Midstream Transportation
- Downstream Processing
General Industries
- Other Industries
Mining
