Saptora LC Slurry Pump

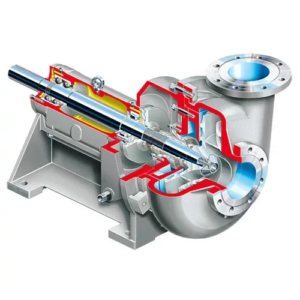

The LC chemical slurry pump is a horizontal, frame mounted, single stage, end suction design with a tangential discharge nozzle. It is engineered to withstand the rigor of applications that are both abrasive and corrosive.
Features & Benefits
- Concentric casing with tangential discharge
- Rigid, one-piece bearing frame with two angular contact outboard bearings and roller inboard bearings
- Large diameter, heavy-duty shaft
- Choice of shaft sealing options – Wet gland packing – Single or double mechanical seal – High-pressure double mechanical seal – Special high solids seals – Alumina industry seal
- Choice of materials of construction
- Multiple impeller designs
- Direct-coupled or belt-driven
- Choice of six drive arrangements
- Options – Inducer – Stuffing box cooling system
Spefification
-
- Flows to 8000 m3/h (35200 gpm)
- Heads to 90 m (300 ft)
- Pressures to 25 bar (360 psi)
- Temperatures to 140°C (285°F)
- Specific gravities to 1.7
Size Range: Discharge Sizes from 50 mm (2 in) to 450 mm (18 in)
Industries
- Water
-
- Water Management
- Wastewater
- Agriculture & Irrigation
- Flood Control System
- General Industries
-
- Pulp & Paper
- Steel & Primary Metals
- Other Industries
- Mining
Documents & Support
Related Literature
LC Slurry Pump Bulletin
Pump Product Portfolio
