Saptora Seal Gard

Saptora Seal Gard

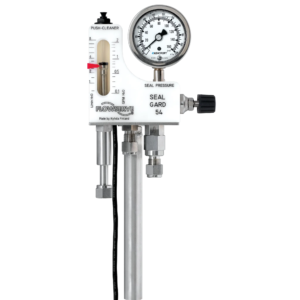

The Seal Gard is designed to improve the mean time between planned maintenance (MTBPM) of your rotary equipment by improving the environment in the seal area. Tough, unitized construction – engineered flow control valve, flow tube, metering float, pressure gauge, check valve, and pipe connections are combined with an optional alarm into a compact package to provide total control of the sealing environment.

Features and Benefits

  • Seal Gard I controls flows at low flush rates in a Plan 32 system
  • Seal Gard II provides dependable flow control to support dual seals while saving water costs and reducing seal water usage
  • Good for paper stock sealing systems with Flowserve split seals and split flow reducers
  • The vertical, tapered acrylic flow tube resists fouling
  • Easy to read pressure gauge is vibration resistant and glycerine filled
  • In the upset event of lost seal water pressure, the standard check valve stops the back-up of product and prevents contamination of the water supply

Specifications

  • Flow up to 2.6 l/min (40 gph)
  • Presssure up to 20.7 bar (300 psi) up to 8.6 bar (125 psi) 140°C (300°F)
  • Temperature 0 to 140°C (32 to 300°F)
  • Connections 0.250 inch NPT

Industries

  • Power
    • Nuclear
    • Conventional Steam
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
    • Geothermal
  • Chemicals
    • Basic (Organic & Inorganic)
    • Specialty (Fine & Consumer)
    • Biofuels
    • Pharmaceutical
    • Petrochemicals
  • Water
    • Wastewater
    • Agriculture & Irrigation
    • Flood Control System
  • Oil & Gas
    • Upstream Exploration & Production
    • Midstream Transportation
    • Downstream Processing
  • General Industries
    • Pulp & Paper
    • Steel & Primary Metals
    • Food & Beverage
    • Corn Wet Milling & Ethanol
    • Other Industries
  • Mining
