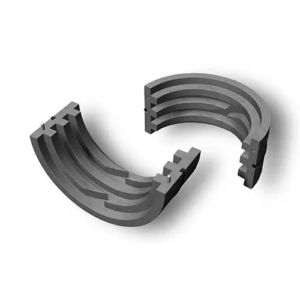

Saptora SEB Solids Excluder Bushing

Used with a saptora mechanical seal, the SEB solids excluder bushing reduces the amount of flush required and clears solids from the stuffing box to provide the seal with a cleaner operating environment that reduces operating costs and improves mean time between planned maintenance (MTBPM).

Request a quote

Features and Benefits

  •  The SEB solids excluder bushing redirects the movement of solids out of the stuffing box and replaces the solids with clean fluid providing a cleaner environment for operation of the mechanical seal.
  • Recirculation of fluid also acts to provide cooling to the mechanical seal.
  • Operation Benefit — flush rates can be reduced to as little as 0.75 L/h for each mm of shaft diameter (5 g/h for each inch of shaft diameter)
  • PTFE construction promotes compatibility within chemical, pharmaceutical and paper stock applications. Available abrasion resistant PEEK construction offers longevity in most mining and mineral ore processing applications.
  • Large circulating grooves reduce plugging of the solids media within the SEB bushing.
  • Two designs are offered to maximize performance within even the most confined stuffing boxes.

Specifications

Pressures: Full vacuum to 30 bar (450 psi)
Temperatures: 0°C to 121°C (250°F)
Flows: up to 25 m/s (80 fps)
Sizes: 45 to 210 mm (1.750 to 8.250 in)

Size Range: 45 to 210 mm (1.750 to 8.250 in)

Industries

  • Power
    • Nuclear
    • Conventional Steam
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
    • Geothermal
  • Chemicals
    • Basic (Organic & Inorganic)
    • Specialty (Fine & Consumer)
    • Biofuels
    • Pharmaceutical
  • Water
    • Water Management
    • Wastewater
    • Agriculture & Irrigation
    • Flood Control System
  • Oil & Gas
    • Upstream Exploration & Production
    • Downstream Processing
  • General Industries
    • Pulp & Paper
    • Steel & Primary Metals
    • Food & Beverage
    • Corn Wet Milling & Ethanol
    • Other Industries
  • Mining

Documents & Support

Related Literature

SEB Solids Excluder Bushing (Standard and Compact) Brochure

Download

SEB Solids Excluder Bushing Installation Instructions

Download
