Saptora ST Mixer Seal

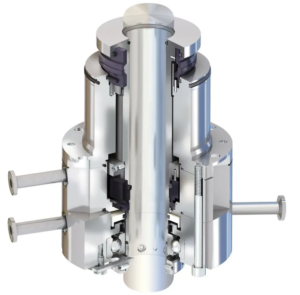

ST Series seals are cartridge, dual pressurized mechanical seals, specifically designed for bottom entry agitators used in the pharmaceutical and bio-pharmaceutical industry. ST seals have been optimized for SIP/CIP and can be made with FDA compliant materials and USP Class VI polymers.

Request a quote

Features and Benefits

Sloped non-pooling product-side design
FDA and USP recognized materials
No contact with animal derivatives
Designed for SIP/CIP
Welded connections to eliminate process contact threaded connections
Electropolish finish standard

Specifications

Standards: Can meet FDA requirements

Size Range: 25 to 108 mm (1.000 to 4.250 in)

Operating Parameters

Maximum Barrier Pressure: 3.4 bar (50 psig)
Maximum Temperature: 135C (250F)
Maximum Speed: 4 m/s (13 fps)

Industries

Chemicals
- Pharmaceutical

Documents & Support

Related Literature

Pharmaceutical Ready ST Seal Flyer

Download

ST Series Installation Instructions
