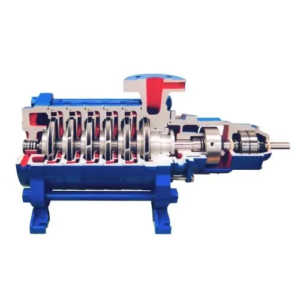

SIHI® MSL/MSM Beatween Bearings Pump – Horizontal, Multistage, Single Case
The MSM / MSL line is a highly efficient ring section pump with patented balancing system, extremely low NPSH, with a wide range of hydraulics and materials.
Features & Benefits
- Patented balancing system reduces recirculation and optimizes efficiency
- Axial or radial inlet for customer piping preference
- Self aligning sleeve bearing requires only one shaft seal
- Antifriction bearing design also available
- Large selection of hydraulics to maximize performance
- Rotatable suction and discharge casing to match customer piping
- Enhanced suction design provides low NPSH
- Material options available
- Robust against quick operation and temperature changes
Spefification
Hydraulic Istitute, ISO 5199, EN25199
Flows to 450 m³/h (1,981 gpm)
Heads to 630 m (2067 ft)
Pressures to 63 bar (914 psi)
Temperatures from -10°C (14°F) to 180°C (356°F)
Sizes from 32 mm (1.25 in) to 150 mm (6 in)
Industries
- Power
-
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
- Biomass & MSW
- Geothermal
- Chemicals
-
- Basic (Organic & Inorganic)
- Mining
- Water
-
- Water Management
- Flood Control System
- General Industries
-
- Pulp & Paper
- Food & Beverage
- Other Industriesa
Documents & Support
Related Literature
SIHI Multi Modular Multistage Pumps
SIHI®MSL/MSM Pump – User Instructions
