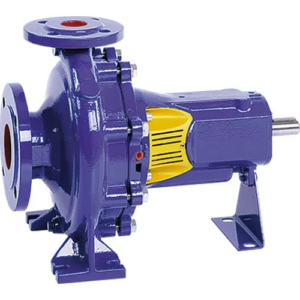

SIHI® ZLN, ZLK, ZLI Industrial Process Pump

ZLN, ZLK, ZLI industrial process pumps are suitable for temperatures up to 170°C (338°F). This diverse range of general-purpose pumps offer the user a low life-cycle cost solution. Capital cost, power consumption, maintenance, reliability and waste, have all been considered during the extensive development phase.

Request a quote

Features & Benefits

Low power consumption:
We fulfill the standard for the future (eco design requirements of EC 2009/125/EC
Optimizes hydraulic grading
Full compliance with EN 733
Low shaft deflection and thereof longer mechanical seal life
For ZLK (closed coupled) no baseplate, coupling and guard needed
Saving up to 20% of the cost for purchase, installation, maintenance and repair compared with units on baseplate
Only reduced spae is required on customer side
Extended ball bearing lifetime
Long Mean time between Failure
Easy on site service
No regular maintenace required
Simple condition monitoring

Spefification

Hydraulic Institute European Regulation No. 547/2012, EN 733/ISO 2858, DIN 5199 and ISO 9908

Flow: max 1800 m³/h (7926 US gpm)
Heads: max. 140 m (459 ft)
Pressure: to PN 16 (232 psi)
Temperature: max. 170°C (338°F)

Sizes from 32 mm (1.25 in) to 300 mm (12 in)

Industries

Power

Conventional Steam
Combined Cycle
Biomass & MSW

Chemicals

Specialty (Fine & Consumer)
Biofuels
Pharmaceutical
Petrochemicals

Water

Water Management
Agriculture & Irrigation
Flood Control System
Desalination

Oil & Gas

Upstream Exploration & Production
Downstream Processing

General Industries
