UZDL Between Bearings Pump – Axially Split, API, Single Case

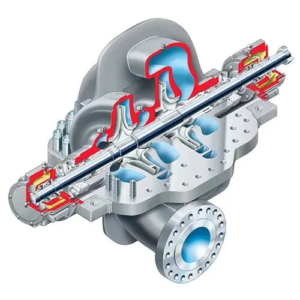

The UZDL is a between bearing, axially split, two-stage pump with a double suction, first-stage impeller. The UZDL is designed for water pipelines, transfer
services, firefighting and high-pressure duties.

Request a quote

Features & Benefits

  • Increased uptime made possible by double volute design that minimizes hydraulic radial loads, and virtually eliminates shaft deflection and vibration
  • Safety and environmental compliance with ISO 21049/API 682 seal chambers
  • Increased reliability provided by stiff shaft design, which ensures trouble-free operation below the first critical speed
  • Ease of maintenance due to suction and discharge nozzles that are integrally cast in lower casing half, permitting disassembly without disturbing piping
  • Centerline
  • Nozzle loading capability beyond API 610


Spefification

  • ISO 13709 / API 610 BB1

    Flows to M3/H

    • Flows to 3000 m3/h (13209 gpm)
    • Heads to 685 m (2250 ft)
    • Pressures to 64 bar (910 psi)
    • Temperatures to 200°C (400°F)

    Size Range: 10″ to 24″


Industries

  • Oil & Gas
    • Upstream Exploration & Production
    • Midstream Transportation
    • Downstream Processing
