Worthington® BP Between Bearings Pump – Horizontal, Multistage, Double Case
You are here: / / / / Worthington® BP Between Bearings Pump – Horizontal, Multistage, ...

Saptora DVSH Between Bearings Pump – Axially Split, API, Single Case

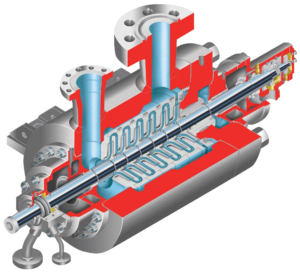

The BP is a medium-pressure, diffuser-style cartridge barrel pump that meets ISO 13709/API 610 specifications. Hydraulically, the flow and head range of the pump positions it between the WXB and WCC models. Critical portions of its massive forged barrel are analyzed by finite element analysis to withstand high stresses of each application. The center diffuser stack is designed using the latest computational fluid dynamics technology to ensure exceptional efficiency and ultralow radial loads.

Request a quote

Features & Benefits

  • Optimized efficiency due to precision-cast impellers and diffusers, designed using the latest computational fluid dynamics technology
  • Ease of maintenance resulting from a progressively stepped shaft that simplifies replacement of shrink-fit impellers
  • Adaptable to the effects of pressure and temperature provided by spiral-wound gaskets, which are also corrosion-resistant
  • Superior corrosion-resistance and reliable sealing in high-pressure and high-temperature services due to Inconel coating on critical sealing surfaces


Spefification

Flows to: 600 m3/h (2640 gpm)
Heads to: 3500 m (11480 ft)
Pressures to: 294 bar (4263 psi)
Temperatures to: 425°C (698°F)

Size Range: 1.5, 2,3,4,6 & 8 inch

Pressure Class Range: Pressures to 294 bar (4263psi)

Seating Material:

  • S5
  • S6
  • S8
  • C6

Industries

  • Oil & Gas
    • Downstream Processing
  • General Industries
    • Other Industries
