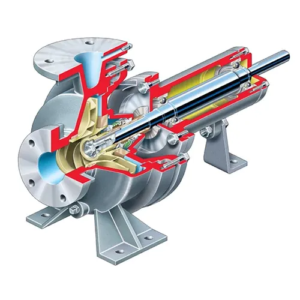

Worthington® D800 Overhung Pump

The D800 Series of pumps has evolved as Flowserve engineers have reacted to the growing need for economical pumps for general industrial service. Covering a large flow and head range, the D800 is versatile and reliable. It is available in multiple configurations to suit site requirements and incorporates many proven features to reduce and facilitate maintenance.

Request a quote

Features and Benefits

Precision Dry-Rabbet Fit with one-piece adapter and seal cover ensures positive alignment and reduces maintenance downtime

Top Centerline Discharge Casing has bottom foot for added support; tap and plug holes for drain connections can also be provided

Precision Cast High-Efficiency Closed Impeller is statically and hydraulically balanced to reduce power consumption

Casing Nozzles conform to ANSI B16.1 specifications with a minimum 125 pound load rating

Threaded or flat-face flanged

Complete Mechanical Seal Assembly is pre-set on the shaft sleeve to ease assembly and reduce maintenance downtime

Renewable Wear Rings and Shaft Sleeves restore worn operating clearances and extend pump life at minimal cost

Flexible Spacer Type Coupling allows pump internals to be removed without disconnecting motor leads or system piping

Specifications

ASME B16.1

Flows to 455 m3/h (2000 gpm)

Heads to 150 m (500 ft)

Pressures to 15 bar (220 psi)

Temperatures to 120°C (250°F)

Size Range: Sizes from 25 mm (1 in) to 125 mm (5 in)

Industries

Chemicals
- Basic (organic and inorganic)
- Specialty products (fine and for consumption)
- Biofuels
- Pharmacists
Mining
Water
- Water management
- Sewage
- Agriculture and irrigation
General sectors
- Pulp and paper
- Steel and primary metals
- Food and beverages
- Ethanol production with wet milling
- Other sectors
