Worthington® Radially Split-WTB Between Bearings Pump – Radially Split, Single Case

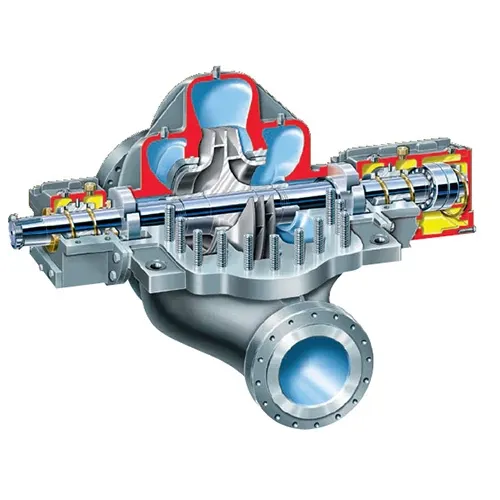

The DVSH is a between bearings, axially split, single stage pump designed for continuous service in heavy duty pipeline services. With over 100 distinct hydraulics, the DVSH provides unsurpassed coverage for high efficiency, reliable operation with thousands of units installed worldwide.

Request a quote

Features & Benefits

  • Double Volute, Axially Split Casing Design minimizes hydraulic radial forces in any condition down to the minimum flow
  • Suction and Discharge Nozzles are integrally cast in the lower casing half to permit pump disassembly without disturbing the piping
  • Near Centerline Mounting provides superior pump alignment and performance at elevated temperatures
  • Double Suction Impeller provides hydraulic axial balance and allows minimal NPSHr. ISO 21049/API 682 Seal Chambers ensure ample flow around the seal faces and accommodate numerous seal designs
  • Heavy-Duty Shaft Design ensures trouble-free operation below the first critical speed
  • Standard Renewable Casing and Impeller Wear Rings provide hydraulic stability and high operating efficiency


Spefification

  • ISO 13709 / API 610
  • Hydraulic Institute
  • Flows to 12000 m3/h (52835 gpm)
  • Heads to 565 m (1854 ft)
  • Pressures to 150 bar (2175 psi)
  • Temperatures to 200°C (400°F)
  • Speeds to 6000 rpm

Size Range: Sizes from 150 mm (6 in) to 750 mm (30 in)


Industries

  • Power
    • Nuclear
    • Conventional Steam
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
    • Geothermal
  • Chemicals
    • Basic (Organic & Inorganic)
  • Water
    • Water Management
    • Flood Control System
    • Desalination
  • Oil & Gas
    • Upstream Exploration & Production
    • Midstream Transportation
    • Downstream Processing
  • General Industries
    • Other Industries
  • Mining
